Foam horizontal cutting

Model:HHHC-1650C/2150C



video# 1: click here to watch it's functions

Description:

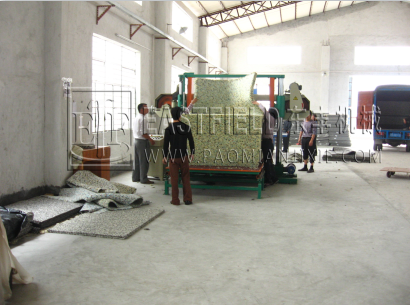

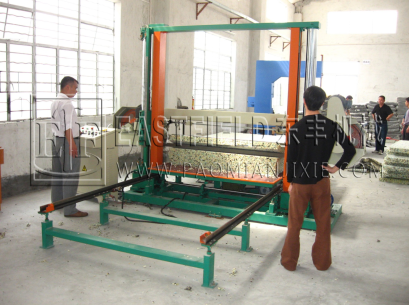

The Automatic horizontal Splitting and Stacking Machine is used to split flexible PU foam blocks into thin layers( can be set as you want ) in a highly efficient and economic way. The cut sheets remain lying on the block and are stacked one onto another. This allows for an automatic and unattended cutting procedure of the machine. the machine equip with vacuum which is more accurately , especially , for light foam cutting , the vacuum can be acted as hold down device,

technical data

HHHS-1650C/2150C

HHHS-1650V/2150V (with vacuum)

customer-built

max cutting height

1200mm

cutting width and length

1650W*2000L/2150W*3000L

total power

8.32kw

11.92kw

slice thinkness

1MM~200mm

1~150mm

cutting tolerance

-/+0.1mm( according to the nature of the materials ) with tolerance adjusted function

blade knife length

8500mm/9480mm

cutting tool options

blade knife /saw

blade knife / saw

machine size

L1500*W1500*H2100

L4500*W4000*H2550
