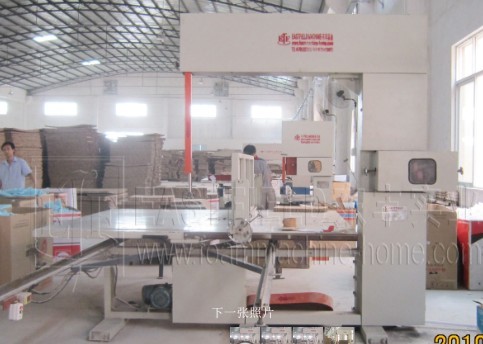

型号: EFVC-M4
立切机(海绵中型)


working video

download working size
to watch video

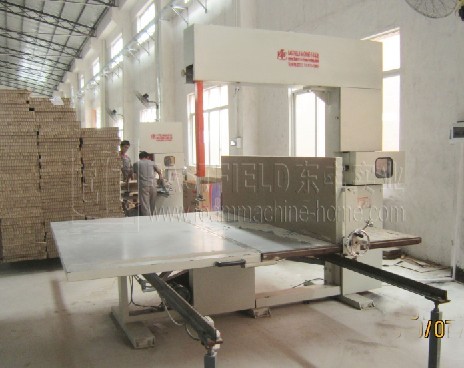

型号: EFVC-B4
立切机(海绵加大型)

working video

download working size
to watch video



型号: EFVC-S4
立切机(强力大型)


working video

download working size
to watch video






本机主要用刀带或锯带将大块的片块状海绵,鞋格、EVA、珍珠绵,皮革,蜂窝纸板,等进行切裁成条料或块料
切割材料
1.此台设计主要切割高精密度及高密度,硬度
2.EVA,鞋材底,皮革,PE绵,包装材料或纸类
3.蜂窝纸等纸板


配置或特点
1.软质的海绵或硬质的泡沫板材
2.EVA,鞋材底,皮革,PE绵,包装材料或纸类
3.蜂窝纸等纸板
4.磨刀电机护罩防护,磨刀安全性跟高
5.机架设计厚实,稳定性高,有效减小颤抖

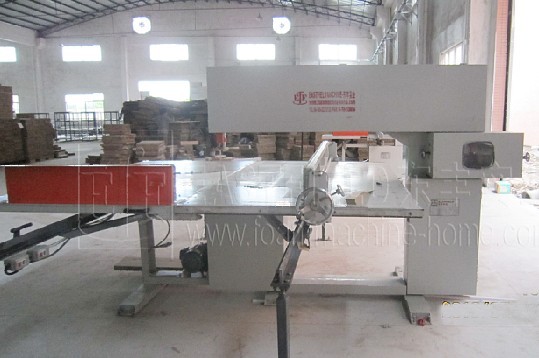

型号: EFVC-M4
立切机(海绵型)

1.内工作台尺寸:W1320×L2290mm
2.外工作台尺寸:W1200×L2290mm
3.最大切割高度: : H1200mm
4.电力功率:1.74kw
5. 刀带长度 : L8100mm
6.机器外形尺寸: L4.5m*W4*H2.55m
7.机器重量 : 1300KG



型号: EFVC-B4
立切机(海绵加大型)

1.内工作台尺寸:W1720×L2290mm
2.外工作台尺寸:W2000×L2290mm

3.最大切割高度: H1200mm
4.电力功率:1.74kw
5. 刀带长度 : L8100mm
6.机器外形尺寸: L4.5m*W4.8*H2.55m
7.机器重量 : 1500KG




型号: EFVC-S4
立切机(强力大型)

1.内工作台尺寸:W1320×L2290mm
2.外工作台尺寸:W1200×L2290mm
3.最大切割高度: : H350mm
4.电力功率:1.74kw
5.刀带长度 : L8100mm
6.机器外形尺寸: L4.5m*W4*H2.55m
7.机器重量 : 1300KG


Description
This machine allows for the cutting and trimming of blocks and slabs made of the above-mentioned materials.By means of a mobile side fence the requested layers of the materials are moved on the moveble table.this machine is mostly used for foam rubber's upright slicing and moldedslicing work.It'scharacteristics can be described as following :


Materials to be cut:
Blocks and slabs made of PU flexible foam (polyether and polyester) as well as PVC flexible foam, furthermore rebond foams, viscose materials,and some special materials used in electronical etc.

Model no

HHVC--S1

HHVC--M1

HHVC--B1

Optional

max cutting height

600mm

800/1200mm

800/1200mm

1300/
1500mm

Inner Table size

W500*L1000MM

W1320*L2290

W1720MM*L2290



Outside Table size

W1000*L1000MM

W1200*L2290

W2000MM*L2290



slice thinkness

3MM~



cutting tolerance





blade knife length

4620

7320/8100

8100/8900



cutting tool options

blade knife

blade knife

blade knife

saw

machine size

L1500*W1500
*H2100

L4500*W4000
*H2550

L4500*W4800
*W2550
