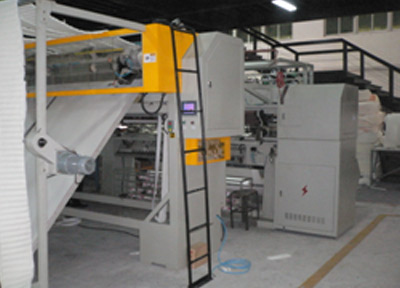

Mattress panel cutting
Model: EFMQ-II
Characteristic:
1. The machine is used to work with quilting machine, and also to work solely
2. This machine is capable of cutting panels, borders, sides and material rolling
3. Using touch screen and PLC control, therefore, operating and safeguarding the machine is easier.
4. Infrared control, the precision is very high, operation is safe.
5. Established sharpening device, to safeguard the blades.
6. Stable, little vibration, low noise, and high efficiency.
7. The machine adopts advanced design. And the Nation's first built.
Technical data:
1. Frame size(L℅W℅H) : 3750℅2500℅2100mm
2. Weight: 1000kg
3. Length of board: 2000mm
4. Thickness: 5-50mm
5. Width: 100-2500mm
6. Speed: 7000mm/min
7. Power: 3KW
8. Power supply: 380V/220V 50Hz/60Hz
9. Air pressure: 0.4-0.8Mpa
|
