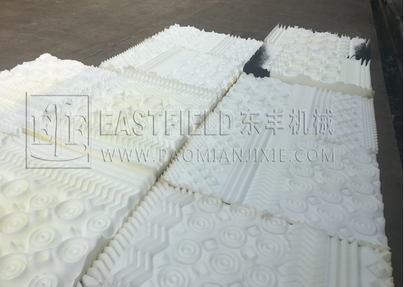

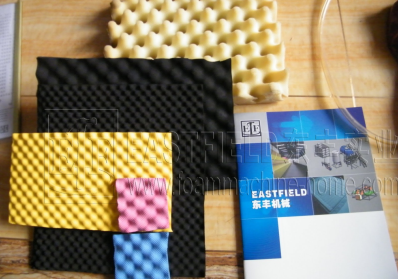

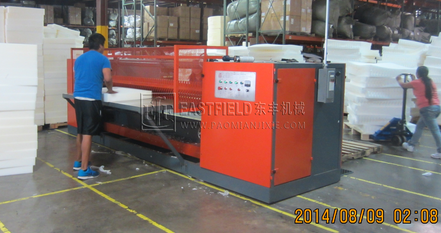

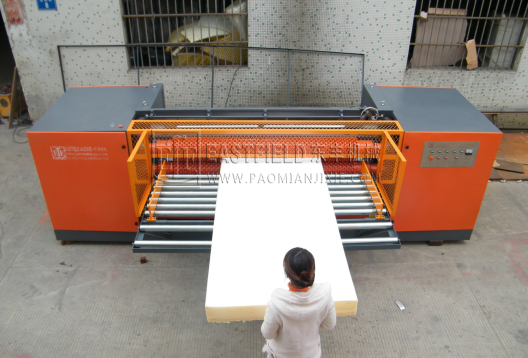

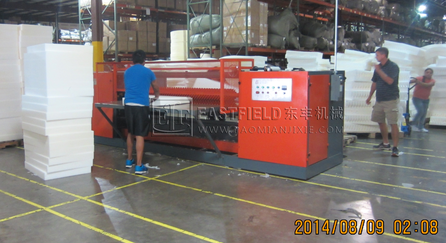

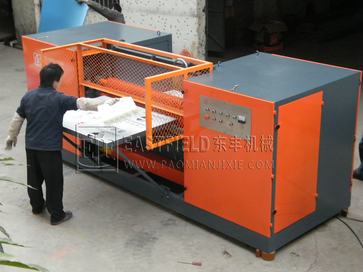

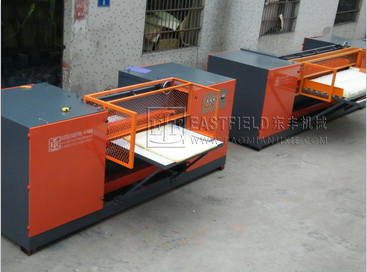

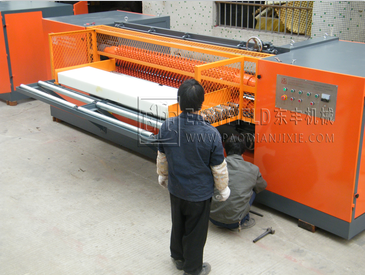

sponge slicer / foam profile cutting / foam convoluter -concavo & convex foam cutting

Model:EFPC-1500/1650/2150 convoluter



Model:EFPC-1500/1650/2150 slitter



Video1: click here to see working way
Videoㄒ2: click here to see simple assemble



pplication:

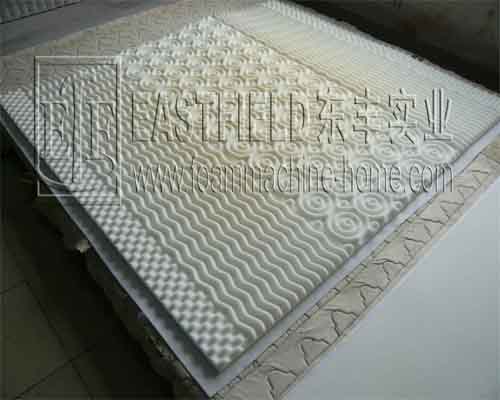

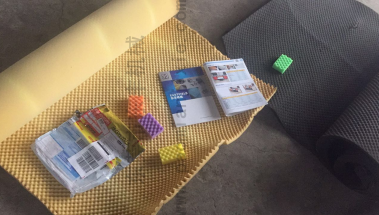

packing sector , mattress , anti-shock , etc .

Description:

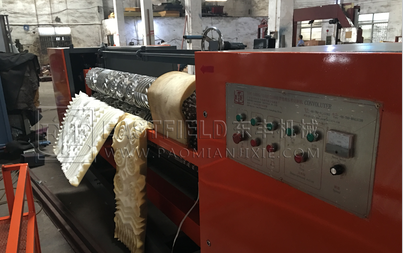

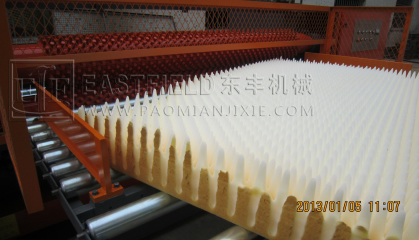

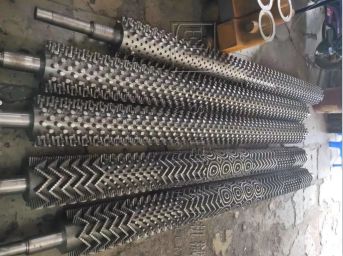

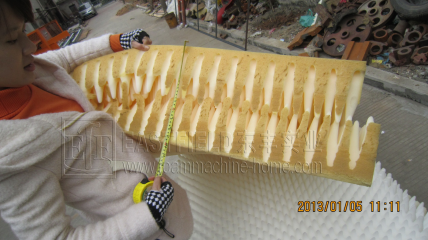

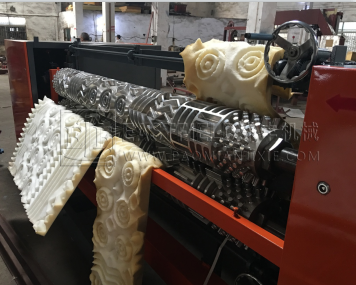

Our profile cutting machine is used for the efficient and economical profiling of slabs made from flexible PU foam. Foam slabs of different initial thickness are deformed by the profile rollers in front of the knife and are then cut in deformed state.

Technical Data mm/ (")

HHPC-1650

HHPC-2150

optional

Working width (mm) max

W1650mm

W2150mm

customer-built

working heigth max

30mm~50mm

30mm~50mm

feed speed

0~25m/min

0~25m/min

blade length

8800

9800

total power

10.74kw

10.74kw



machine size

L4.2*W1.25*H1.55M

L4.7*W1.25*H1.55M
