Model:HHHC20-1650 / HHHC20-2150


Description
The Automatic horizontal Splitting and Stacking Machine is used to split flexible PU foam blocks into thin layers( can be set as you want ) in a highly efficient and economic way. The cut sheets remain lying on the block and are stacked one onto another. This allows for an automatic and unattended cutting procedure of the machine. the machine equip with vacuum which is more accurately , especially , for light foam cutting , the vacuum can be acted as hold down device, the different between this machine and other square table horizontal foam cutting machine is that you can put several independent block onto the table to cut in one time , like horizontal cutting foam machine with circle table

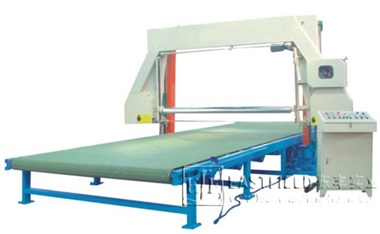

 Foam cutting machine

HHHC20-1650

HHHC20-2150

available cutting foam size

W1650mm*L20000mm

W2150mm*L20000mm

available cutting height

H1200mm

H1200mm

cutting thickness range

1-80mm

1-80mm

cutting type

automatic & with pressure roller

cutting speed

0-60m

0-60m

knife length

L6780mm

L8300mm

motor power

9.11kw

9.11kw

floor space

L43000mm℅W3500℅H2400

L43000mm℅W4200℅H2400
