What is foam?
What is Polyurethane foam?
What is visco memory foam?
What is Styrofoam?
What is EPS foam?
What is XPS foam?
What is EPP foam?
What is PE foam?
What is retardant foam?
How to buy fire fighting foam?
How to produce mattress?
Mattress spring

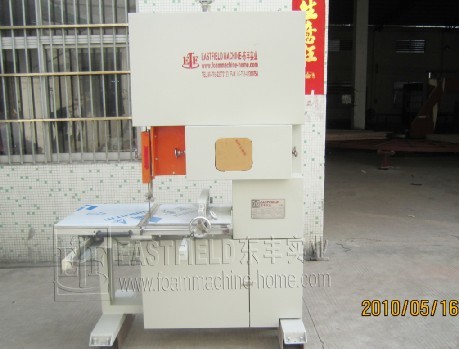

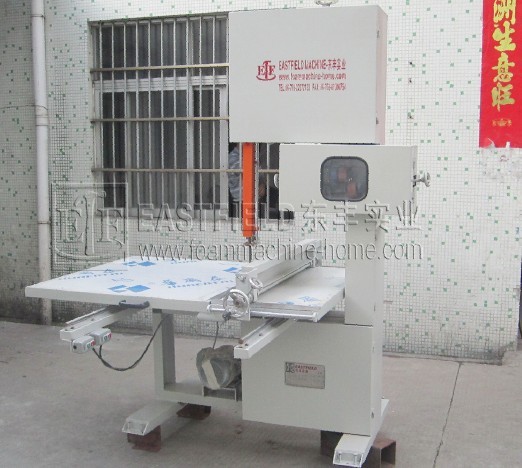

型号: EFVC-S2I
立切机(安全小型)


working video

download working size
to watch video



立切机(通用小型)

型号: EFVC-S2

working video

download working size
to watch video

型号: EFVC-S2M
立切机(高精迷你型)


working video

download working size
to watch video


本机主要用刀带或锯带将大块的片状海绵、鞋格、EVA、珍珠绵,皮革,蜂窝纸板,等进行切裁成条料或块料
切割材料
1.软质的海绵或硬质的泡沫板材
2.EVA,鞋材底,皮革,PE绵,包装材料或纸类
3.蜂窝纸等纸板
配置或特点
1.推动挡板采用滚珠直线轴承导轨
切割更精准,易推动,工作轻松,效率高
2.磨刀电机护罩防护,磨刀安全性跟高

1.内工作台尺寸: L500mm*W1000mm
2.外工作台尺寸: L1000*W1000mm
3.最大切割高度: 600mm
4.电力功率:1.74kw
5. 刀带长度 : 4620
6.机器外形尺寸:L1680*W1600*H2150
7.机器重量 : 820KG


Description
This machine allows for the cutting and trimming of blocks and slabs made of the above-mentioned materials.By means of a
mobile side fence the requested layers of the materials are moved on the moveble table.this machine is mostly used for foam rubber's upright slicing and moldedslicing work.It'scharacteristics can be described as following :


Materials to be cut:
Blocks and slabs made of PU flexible foam (polyether and polyester) as well as PVC flexible foam, furthermore rebond foams, viscose materials,and some special materials used in electronical etc.

Model no

HHVC--S1

HHVC--M1

HHVC--B1

Optional

max cutting height

600mm

800/1200mm

800/1200mm

1300/
1500mm

Inner Table size

W500*L1000MM

W1320*L2290

W1720MM*L2290



Outside Table size

W1000*L1000MM

W1200*L2290

W2000MM*L2290



slice thinkness

3MM~



cutting tolerance





blade knife length

4620

7320/8100

8100/8900



cutting tool options

blade knife

blade knife

blade knife

saw

machine size

L1500*W1500
*H2100

L4500*W4000
*H2550

L4500*W4800
*W2550














keywords: cylinderblockplant ; continuousfoamplant ; discontinuousplant ;mattressfoamplant ; foamscrapeshredder
