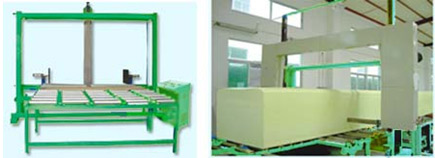

Foam cut off / block cutter

Model: HHBC- 1CO

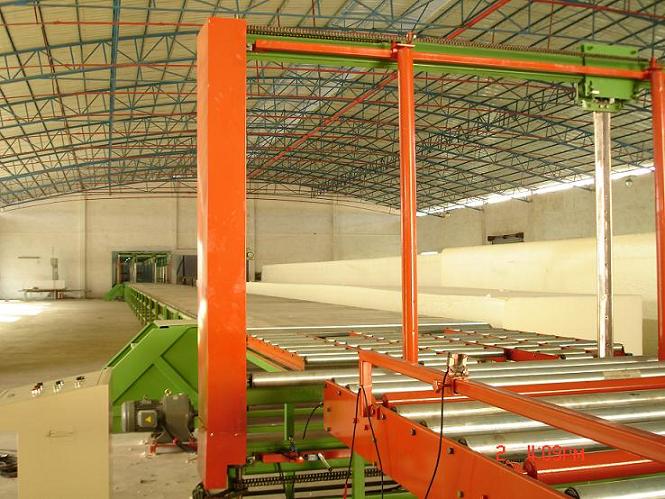

The Fully Automatic Travelling Cut-Off Machine with rotating bandknife is used to cut flexible PU foam blocks
into length behind the foaming line. The machine is a self-contained unit and can, therefore, be installed behind any foaming line.
The machine consists of a conveyor equipment to take over the endless PU foam block and a cutting unit, which can be moved
in foaming direction. The conveyor equipment - and during the cutting process even the cutting unit -
are synchronized with the foaming line. As soon as the required block length is achieved, the cutting unit
automatically moves downwards. The rotating, teflon-coated bandknife cuts the block to the required length


technical data

HHBC- 1CO

max cutting height

1300mm

working width

2400mm

conveyer belt speed

0~8m/min

total power

8.69KW

machine size

L6000*W4550*H4000

blade knife length

10940

machine weight

2000KG
