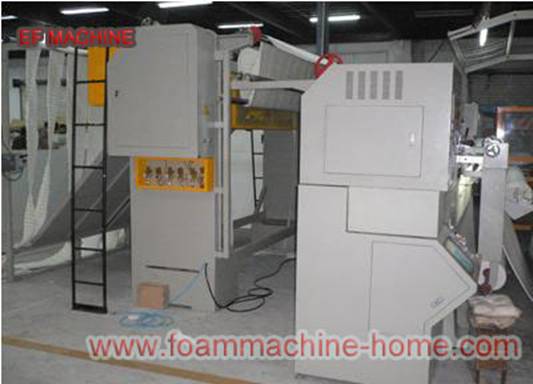

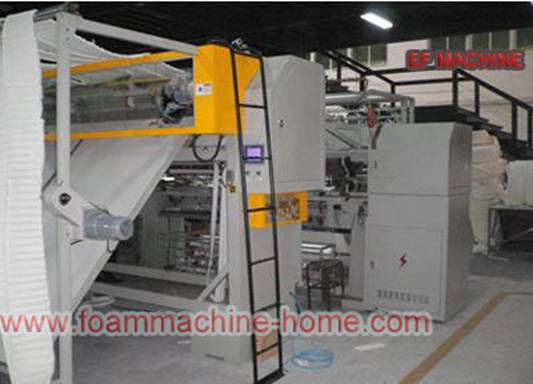

Mattress quilting machine

Model: EFMQ -94-3JA

- Computerized multi-needle shuttle less quilting machine



Characteristic:
1. Function of automatic stop on breaking of thread and needle raising.
2. Bottom thread cutting and fabric rolling are the fastest in the world with production rate of 20% to 50% higher than any other quilting machines in the nation.No needle rod design, more durable, reliable and stable
3. .Bottom stitch uses common mixed cotton thread for all patterns.
4. Very little deformation when quilt on between thick and thin fabric.
5. Uses high speed aero dynamic bottom thread cutting machine architecture, and therefore, can produce an uniform and threadless edge.

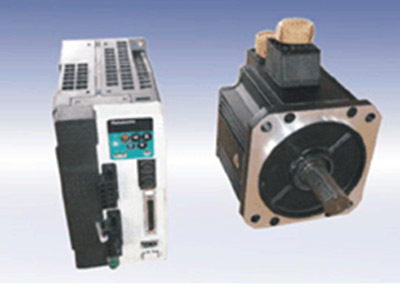

6. Both X and Y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.
7. Extended horizontal movement (moving distance of 450mm), can produce super large patterns.
8. Spacious look with the single unit design.
9. Nation's first built multi independent quilting machine.
10. . (This machine is also capable of quilting single independent, all round 360 degree and 180 degree patterns.)

Technical data:
1. Size: 5200*1220*2000(mm)
2. Weight: 4000kg
3. Quilt width: 2450mm
4. Rotation speed; 750~950 RPM
5. Production speed: 65~180m/h
6. Needle type: 180/24
7. Needle arrangement: (50.8, 76.2, 127)(76.2, 76.2, 152.4)
8. Quilting thickness: ≒50mm
9. max Stitch size: 2~7mm
10. Needle space: 25.4mm
11. Power: 4.5KW
