Angle foam cutting (edge)

Model:EFAC-A



·Simple handlig
·No additional software training necessary
·World wide support and delivery of spare parts
·Grinding unit
·Grinding dust extraction unit





Application Area:
Packing industry, furniture and upholstery industry, automotive industry, medical technical industry

Material:
Flexible foam,EPE,EVA, PE-bland, semi-rigid foam ,bonded foam, latex ,most apply for packing sector

Description

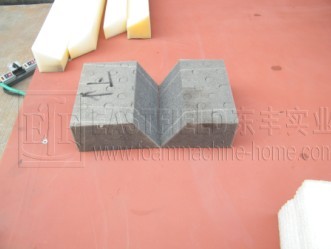

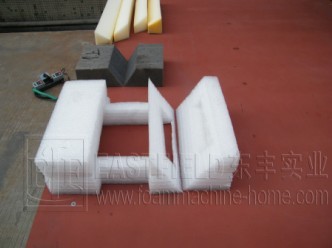

Machine for angle cutting used to slope and template foam parts at the same time, It’s can be used as a small vertical cutting machine,it's characteristics can be described as following :
·2-wheel-knife unit with 10 mm band knife width
·Gummed running wheels with a diameter of 300 mm
·Out of the vertical position the stationary cutting unit can be swiveled forward or backward up to 15 degree by motor. Max. Adjustment: 90 degree.



Technical Data mm/ (")

HHAC-B (beeline) ( mm/")

inside table

L300*W1500mm=(11.81"*59.03")

outside table

L1000*W1500mm=(39.35"*59.03")

Passage height at 90 degree position of the aggregate:

450 mm /17.71"

Configuration:

2 wheel knife unit

Powered grinding unit

45~90C of processing angle

Knife guiding and knife protector manually adjustable

Max. Cutting Speed:

3-25 m/min, depending on the material to be cut
