Carrousel foam horizontal cutting
Model:EFRC-6/7/10 Foam Carrousel horizontal splitting machine (flexible & rebond foam density below 100kg/m3)
Model:EFRC-RT-6/7/10 Foam Carrousel horizontal cutting machine ( rebond foam density within 300kg/m3)
Application Area:
Furniture industry, mattress industry, automobile industry, packing industry, medicine industry.
Description:

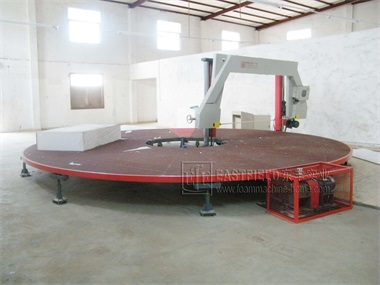

Carrousel foam horizontal cutting : The Automatic Circular Splitting and Stacking Machine is used to split flexible PU foam blocks into thin layers in a highly efficient and economic way. The cut sheets remain lying on the block and are stacked one onto another. This allows for an automatic and unattended cutting procedure of the machine. A substantial increase of capacity compared with the horizontal cutting machines equipped with sliding table can be achieved, since due to the rotating circular table, the return stroke after each cut is eliminated.
Foam Carrousel horizontal cutting machine
cutting block pcs :
cutting block pcs :
HHRC-RT-6
BLOCK SIZE OF (W1.5×L2×H1.2)×4 PCS
HHRC-RT-7
BLOCK SIZE OF (W1.5×L2×H1.2) ×5 PCS Or BLOCK SIZE OF (W2.15×L3×H1.2)×3 PCS
HHRC-RT-10
BLOCK SIZE OF (W1.5×L2×H1.2)×8 PCS Or BLOCK SIZE OF (W2.15×L4.5×H1.2)×3 PCS
Carrousel foam horizontal cutting Data
specification data ( mm/") |
EFRC-6 |
EFRC-7 |
EFRC-10 |
table size dia-meter |
6000mm |
7000mm |
10000mm |
total power |
7.94kw |
8.74kw |
10.2 kw |
worktable rotating speed |
0~3.5r/min |
0~3.5r/min |
0~3.5r/min |
Knife blade length |
8940mm |
10000mm |
10240mm |
cutting thickness |
1mm~ |
1mm~ |
1mm~ |
Cutting tolerance |
±0,1 mm
with tolerance adjusted function |
|
optional |
vacuum |
|
|
