foam peeler

Model: EFPC--2200/2400 (flexible foam peeling )

rewind frame

specification data:

1.cutting dia-meter: 2000mm /(78 inch)
2.cutting length :2200mm /(84.645 inch)
3.cutting thickness:2~25mm/(0.078~0.984 inch)
4.total power :5kw
5.voltage: (380 v ,50hz . 3 phase)
6.turning speed :27m~30m/min/
meter(1.062~1.181inch/min)
7. setting thickness control by change gear
8.cutting density : 120kg/cubic ( max)
9.weight:2000kg
10.machine lay out size:4500L*w1700*h2100mm
working description:
By means of a peeling mandrel and an infinitely adjustable feed roller the cylinder block is put into a rotating movement. The peeled foil is continuously wound up by the wind-up machine.The required layer thickness is adjusted by means of our general way of change gears, different gear size result of different cutting thickness , compared with HHPC-2200 ,HHPC-HD1500, this model is most suitable for cutting lower density arrange within 90kg/cubic meter .



Model: EFPC-R1900 (bonded foam & cork for under-floor ...)

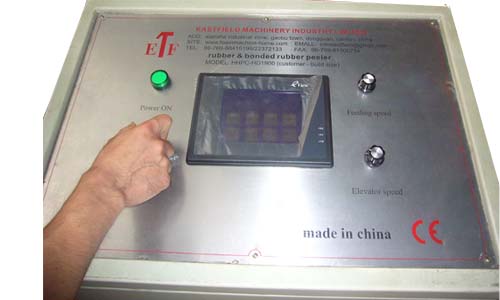

video# 1 ( pro-face ): click here to see it's functions

specification data:

1>peeling desity : within 350KG/M3.
1.cutting dia-meter: 2000mm /(78.74inch)
2.cutting length :1900mm /(74.803 inch)
3.cutting thickness:2~25mm/(0.196~0.984 inch)
4.total power :8.69kw
5.voltage: (380 v ,50hz . 3 phase)
6.turning speed :27m~30m/min/ (1.062~1.181inch/min)
7.weight:2000kg
8.machine lay out size:4500L*w1700*h2100mm
(177L*w67*h83inch)
working description:
By means of a peeling mandrel and an infinitely adjustable feed roller the cylinder block is put into a rotating movement. The peeled foil is continuously wound up by the wind-up machine.The required layer thickness is adjusted by means of our general way of change gears, different gear size result of different cutting thickness , compared with HHPC-2200 ,HHPC-HD1500, this model is most suitable for cutting middle density arrange within 450kg/cubic meter .



Model: EFPC--HD1500(flexible foam , bonded foam & EPDM & cork for under-floor)

video# 1 ( pro-face ): click here to see it's functions
video# 2 ( rewinder): click here to see simultaneous rewinding

specification data:

1>peeling desity : 1000KG/M3.
2>Block max weight : 1000-1500 kg
3>working width : 1500mm
4>block dia-meter max :1500mm
5>weight:3000kg
6>turning speed :0m~30m/min
7>cutting thickness:2~35mm/(0.078~0.0.393 inch)
8>total power :18.1kw
9>voltage: (380 v ,50hz . 3 phase)
working description:
By means of a peeling mandrel and an infinitely adjustable feed roller the cylinder block is put into a rotating movement. The peeled foil is continuously wound up by the rewinding systerm.The required layer thickness is controled by PLC , and servo motor ,advanced ball screws , which result of high cutting accurat ,compared with HHPC-R1900, HHPC-2200 ,this model is much more automatic in thinkness setting ,as well as cutting much higher density and hardness

Cylindrical peeler brief introduction

Cylinders made from PU flexible foam and Rbond foam,EPDM rubber granules ,polyurethane bonded EPDM granules,cork and similar smooth materials with high density and hardness density within 1000kg/cubic meter .

characteristic:

Thus, according to the preselected layer thickness the cylinder to be peeled is steadily moved to the rotating bandknife. And it's characteristic described as following :
﹞Very high cutting accuracy and surface quality
﹞Exact electronic advance
﹞All-purpose machine in different areas, especially for soft foams
﹞Easy To operate
﹞No additional software training necessary
﹞High resale value
﹞Long duration with low maintenance costs

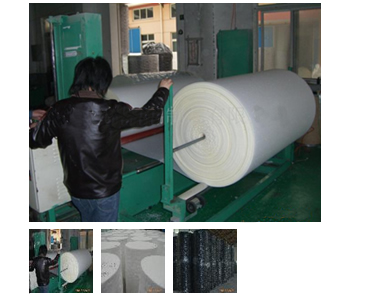

Foam peeling with it rewinding system
